Chisel ploughs have become a revolutionary machine in deep soil cultivation and they have completely replaced standard soil cultivation with a plough in many cases. We have specialized in the production of chisel ploughs for a long time and our portfolio offers both mounted and trailed models, with a working width from 10 to 21 feet.



CHISEL PLOUGHS

WHAT TO USE A CHISEL PLOUGH FOR

The chisel plough is designed for deep soil cultivation and loosening, up to a depth of 26 inches. By using a chisel plough to loosen soil, you will achieve an ideally loosened soil structure with enough pores to allow for the movement of air, water and nutrients.

Soil cultivation using a chisel plough can be used as a replacement of standard tillage with lower towing demands, fuel consumption, and higher output. Deep cultivation with chisel ploughs should be supplemented with profile fertilization.





CHISEL PLOUGHS

MAIN ADVANTAGES OF TERRALAND CHISEL PLOUGHS

The mounted chisel ploughs allow processing soil up to the maximum working depth of 26 inches. It is thanks to the high frame usability, arrangement of the individual tines, their protection, and above all, the highly robust design of the main load-carrying frame, made of high-strength Alform steel.

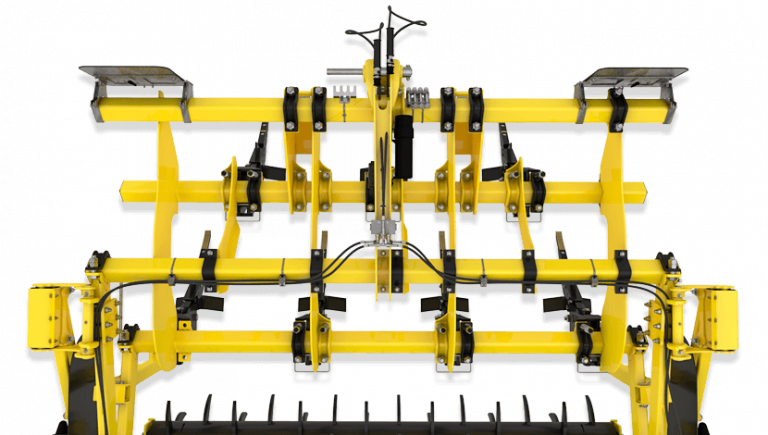

The tines of the chisel ploughs can be easily adjusted to the performed operation. There are Active-Mix tines for deep loosening with active soil mixing, or Zero-Mix tines with a negative angle for soil aeration without active mixing.







CHISEL PLOUGHS

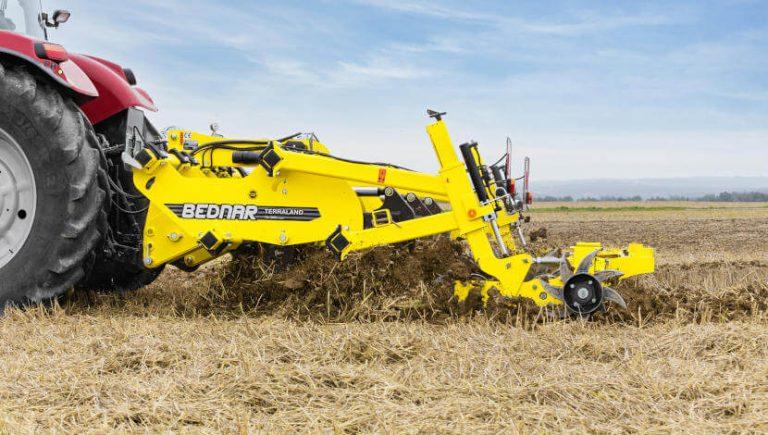

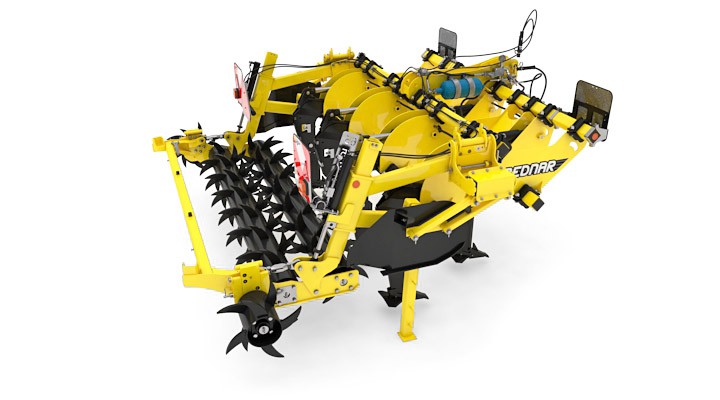

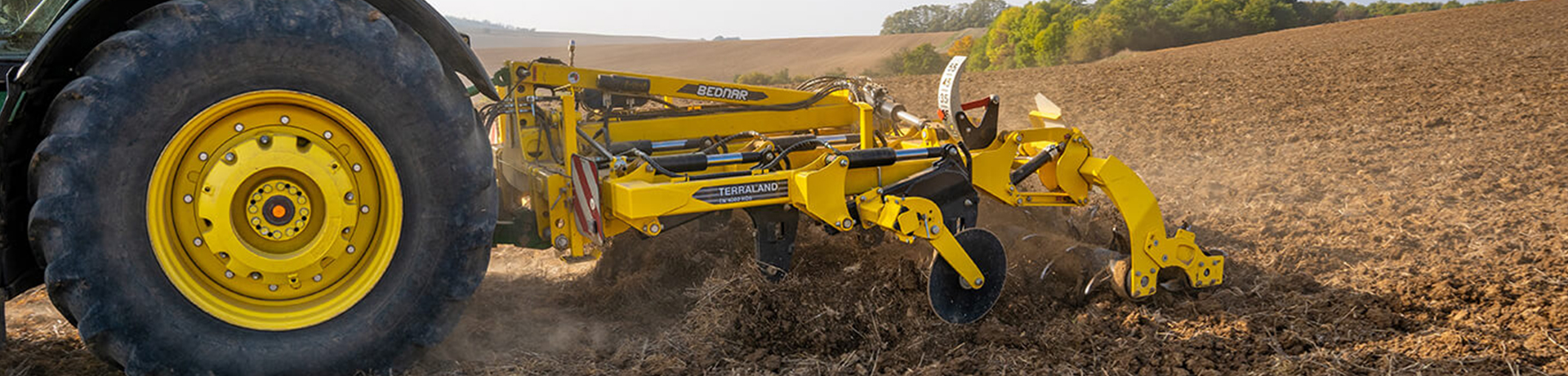

TERRALAND TN MOUNTED CHISEL PLOUGHS

The mounted chisel ploughs are designed for deep loosening with a requirement for lower towing power of the tractor.The TERRALAND TN mounted chisel ploughs are available with a working width of 10 and 13 feet, with five, seven or nine tines per frame.

They are made in the M version that allows soil cultivation up to a depth of 22 inches, or D version for the maximum depth of up to 26 inches. The individual versions are available with hydraulic protection, or shear bolt protection.





CHISEL PLOUGHS

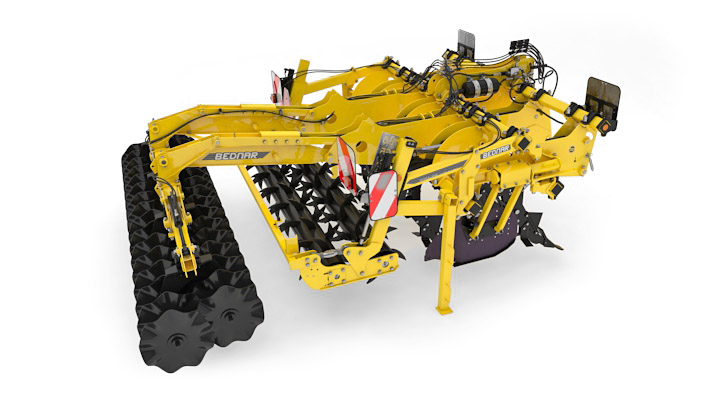

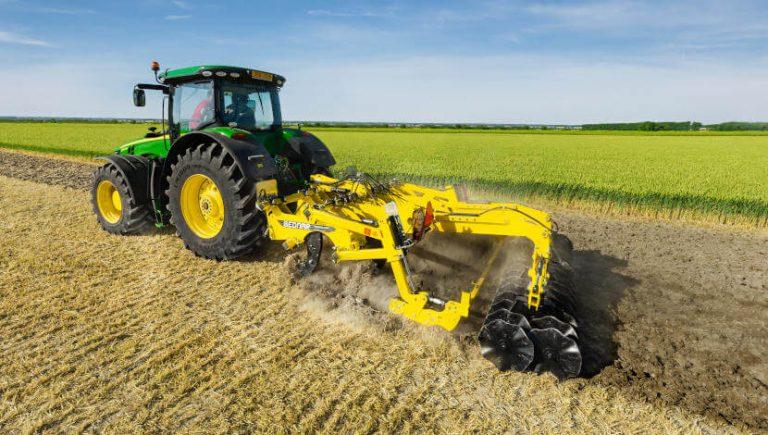

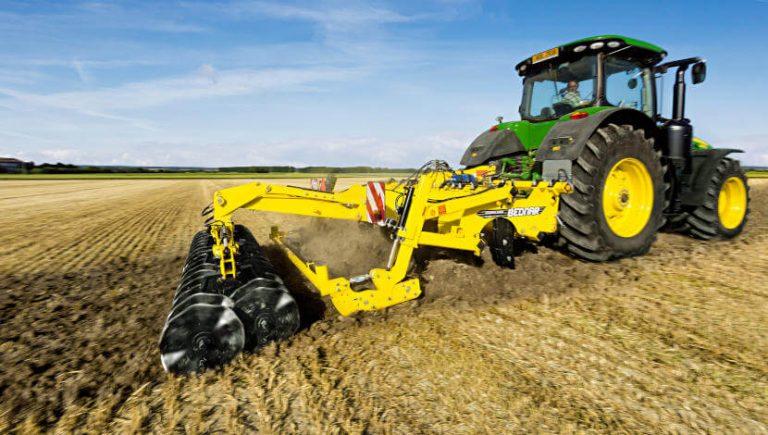

TERRALAND TN_PROFI CHISEL PLOUGHS WITH SOIL CULTIVATION

TERRALAND TN_PROFI CHISEL PLOUGHS WITH SOIL CULTIVATION

The TERRALAND TN_PROFI chisel ploughs have a different combination of working parts than the standard TN version. Moreover, the machine is equipped with two rows of cutter discs that crumble clods and prepare soil for seeding, all in one pass.

TERRALAND TN_PROFI chisel ploughs are available with a working width of 10 and 13 feet, with five, seven or nine tines per frame.







CHISEL PLOUGHS

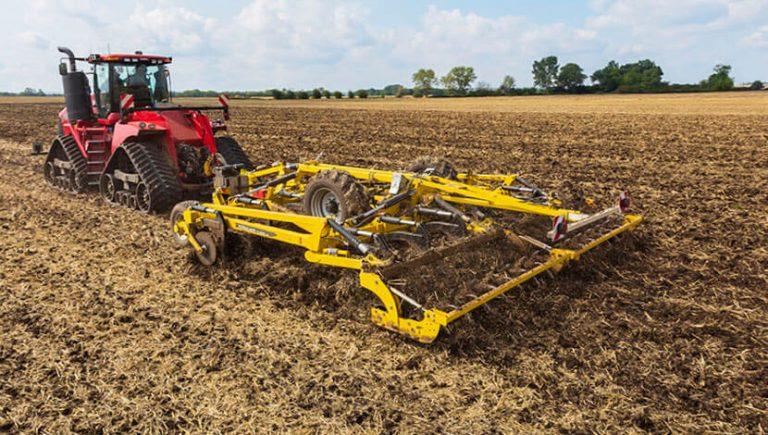

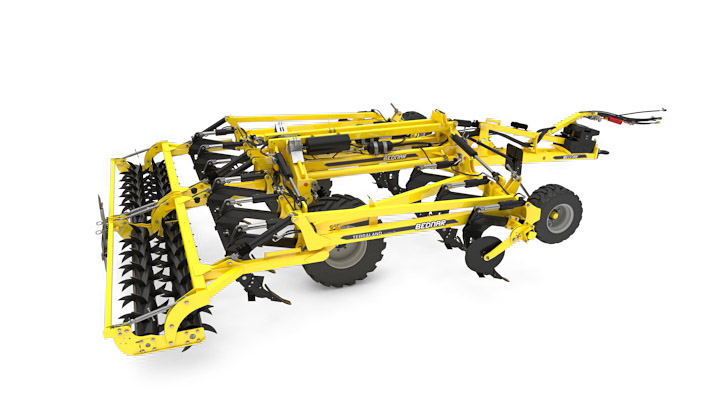

TERRALAND TO WIDE CHISEL PLOUGHS

The TERRALAND TO mounted chisel ploughs are the widest chisel ploughs available on the market. We manufacture them with a working width from 13 to 21 feet, and they are designed for aggregation with tractors with horsepower of up to 620.

The wide TERRALAND TO chisel plough can be provide the equipment for aggregation with mounted packers. This version allows creation of an ideal soil structure suitable for seeding in one pass.
